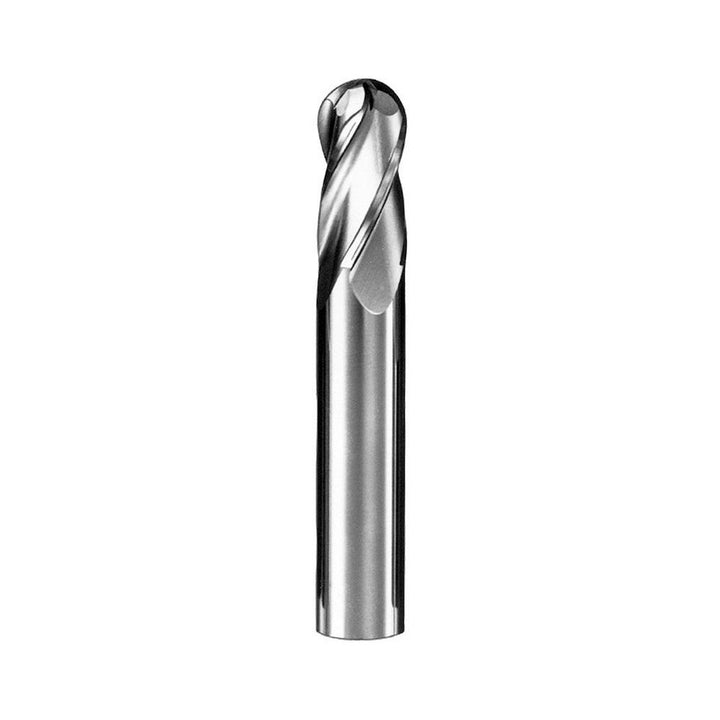

1/64" 4-Flute Solid Carbide Ball End Mill - SGS 30102

SGS

1/64" 4-Flute Solid Carbide Ball End Mill - SGS 30102

MFR# 30102Series 1B

$36.96List $47.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/64
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30102 is a 1/64 4-flute Solid Carbide (Micrograin) ball end mill. 1/32 length of cut, 1-1/2 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/32
Length typeRegular
Material gradeMicrograin
Mill diameter in1/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexYes
