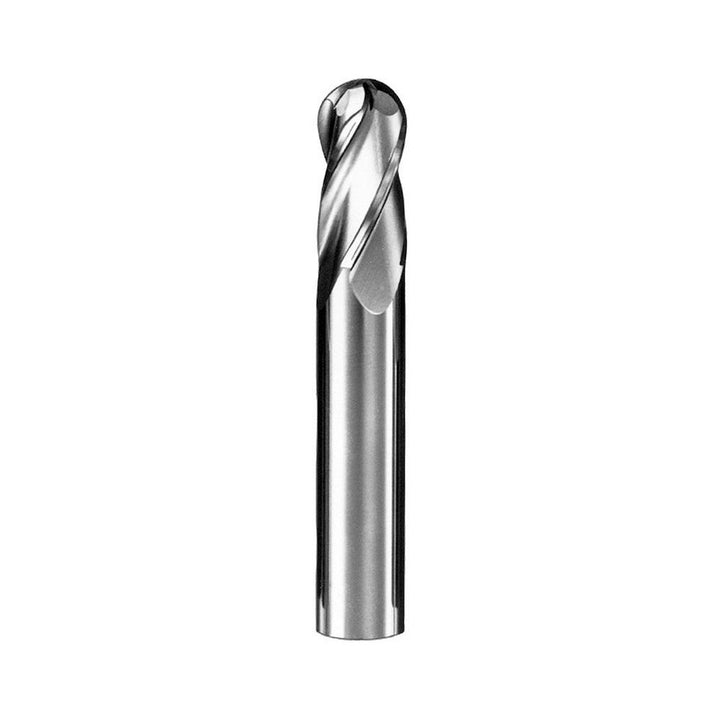

11/32" 4-Flute Solid Carbide Ball End Mill - SGS 30144

SGS

11/32" 4-Flute Solid Carbide Ball End Mill - SGS 30144

MFR# 30144Series 1B

$56.56List $71.28 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter11/32
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30144 is a 11/32 4-flute Solid Carbide (Micrograin) ball end mill. 1 length of cut, 2-1/2 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in11/32
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixNo
Variable indexYes
