11/16" 4-Flute Solid Carbide Ball End Mill - SGS 30170

SGS

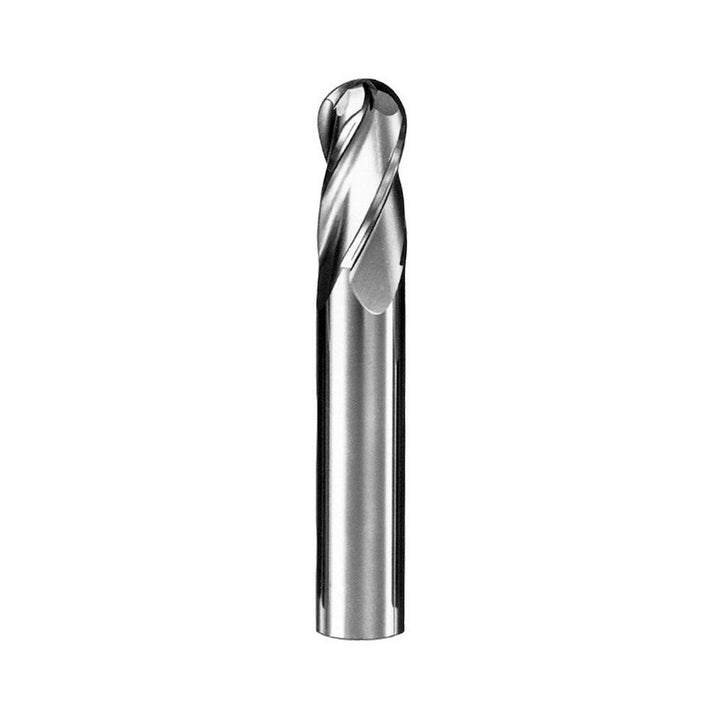

11/16" 4-Flute Solid Carbide Ball End Mill - SGS 30170

MFR# 30170Series 1B

$223.04List $286.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter11/16
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 30170 is a 11/16 4-flute Solid Carbide (Micrograin) ball end mill. 1-3/8 length of cut, 4 overall length. Series 1B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length typeRegular
Material gradeMicrograin
Mill diameter in11/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.00000 to -0.00051 in
Single or double endSingle
Variable helixNo
Variable indexYes
