SGS

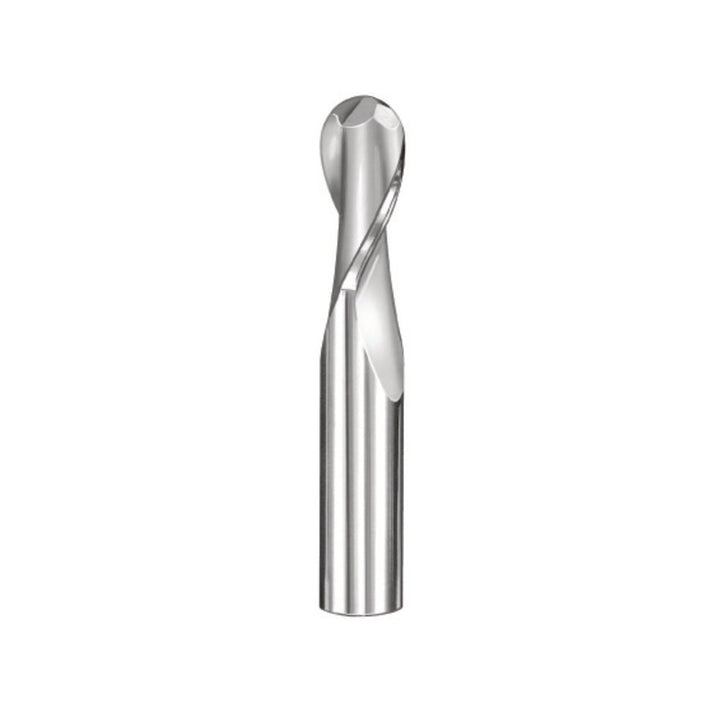

5/64" 2-Flute Solid Carbide Ball End Mill - SGS 30310
MFR# 30310Series 3B
$17.49List $22.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/64
Flutes2
MaterialSolid Carbide
Description
The SGS 30310 is a 5/64 2-flute Solid Carbide (Micrograin) ball end mill. 3/16 length of cut, 1-1/2 overall length. Series 3B.
Specifications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length typeRegular
Material gradeMicrograin
Mill diameter in5/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexNo
