1/16" 3-Flute Solid Carbide Square End Mill - SGS 30507

SGS

1/16" 3-Flute Solid Carbide Square End Mill - SGS 30507

MFR# 30507Series 5

$15.41List $19.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/16
Flutes3
MaterialSolid Carbide

Description

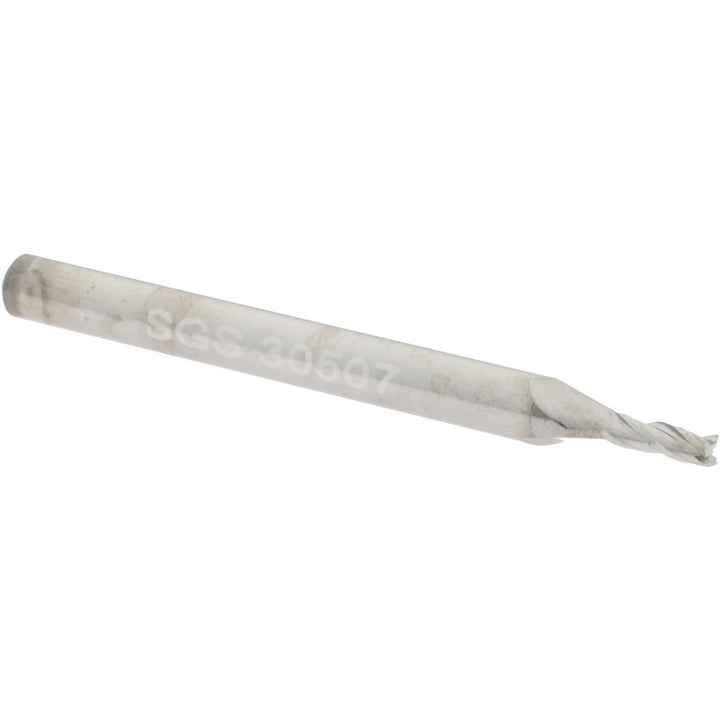

The SGS 30507 is a 1/16 3-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length of cut range0.1000 - 0.2000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance-0.001/-0.002 in
Number of flutes3
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
