SGS

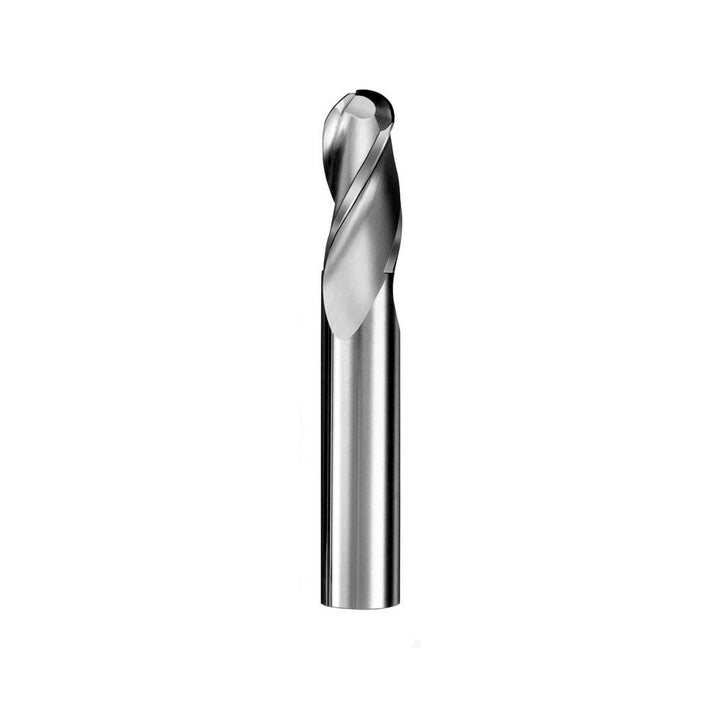

1/16" 3-Flute Solid Carbide Ball End Mill - SGS 30508
MFR# 30508Series 5B
$17.84List $22.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/16
Flutes3
MaterialSolid Carbide
Description
The SGS 30508 is a 1/16 3-flute Solid Carbide (Micrograin) ball end mill. 3/16 length of cut, 1-1/2 overall length. Series 5B.
Specifications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/16
Length typeRegular
Material gradeMicrograin
Mill diameter in1/16
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes3
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000 to -0.00032 in
Single or double endSingle
Variable helixNo
Variable indexNo
