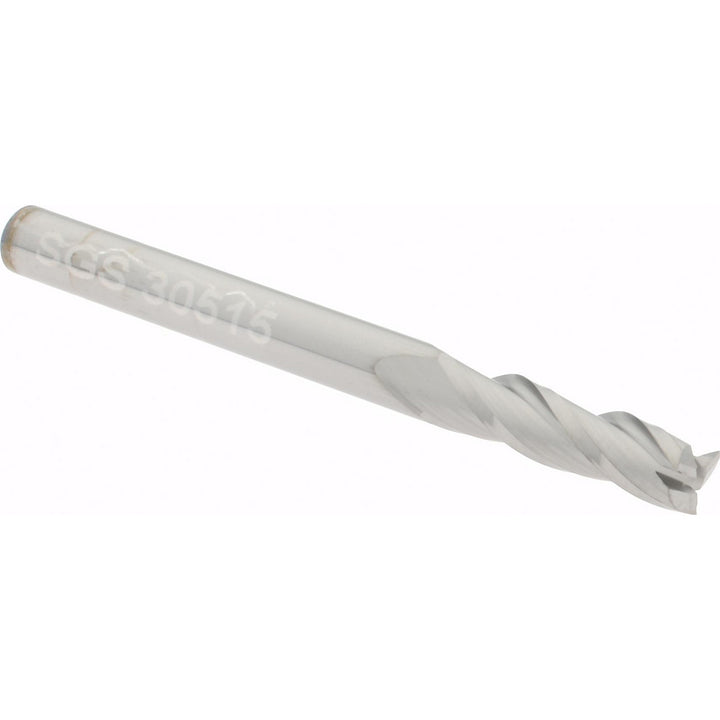

1/8" 3-Flute Solid Carbide Square End Mill - SGS 30515

SGS

1/8" 3-Flute Solid Carbide Square End Mill - SGS 30515

MFR# 30515Series 5

$13.72List $17.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide

Description

The SGS 30515 is a 1/8 3-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 1-1/2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance-0.001/-0.002 in
Number of flutes3
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

RobbJack1/8" 3-Flute Solid Carbide Square End Mill - RobbJack C8-303-04 $50.99 GWS1/8" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 105059 $37.81 ProMax1/8" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-00816 $19.59 RobbJack1/8" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-04 $24.22
