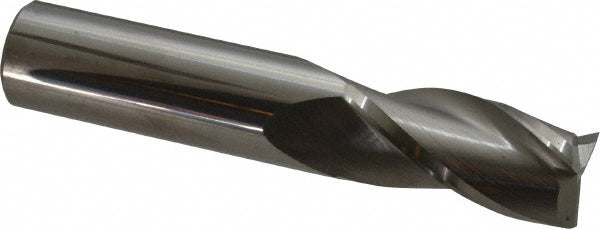

3/4" 3-Flute Solid Carbide Square End Mill - SGS 30571

SGS

3/4" 3-Flute Solid Carbide Square End Mill - SGS 30571

MFR# 30571Series 5

$193.55List $248.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide

Description

The SGS 30571 is a 3/4 3-flute Solid Carbide (Micrograin) square end mill. 1-1/2 length of cut, 4 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/2
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance-0.001/-0.002 in
Number of flutes3
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
