3/32" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30816

SGS

3/32" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30816

MFR# 30816Series 5

$16.36List $20.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

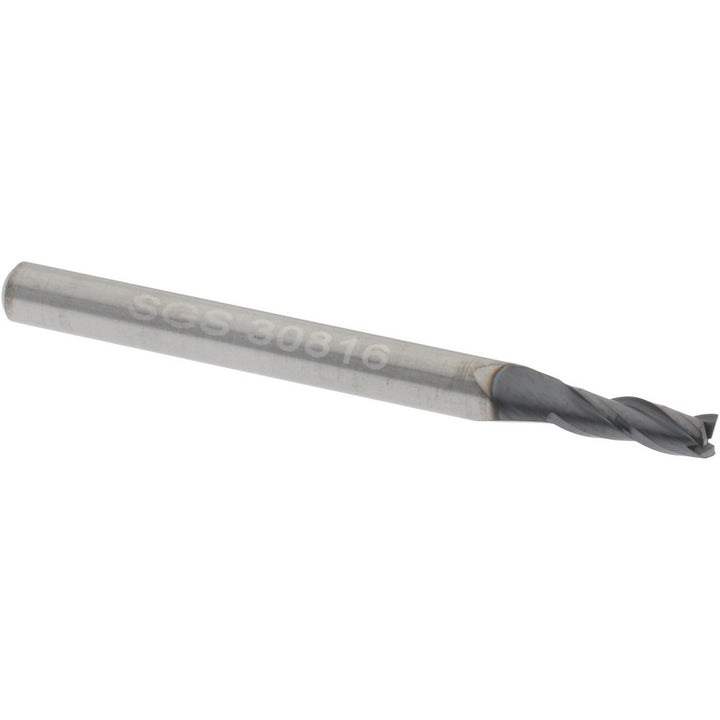

The SGS 30816 is a 3/32 3-flute Solid Carbide (Micrograin) square end mill. 9/32 length of cut, 1-1/2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/32
Length typeRegular
Material gradeMicrograin
Mill diameter in3/32
Mill diameter tolerance+0.0001/-0.002 in
Number of flutes3
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
