5/32" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30820

SGS

5/32" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30820

MFR# 30820Series 5

$22.32List $28.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

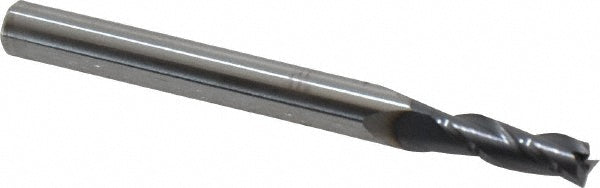

The SGS 30820 is a 5/32 3-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.0001/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
