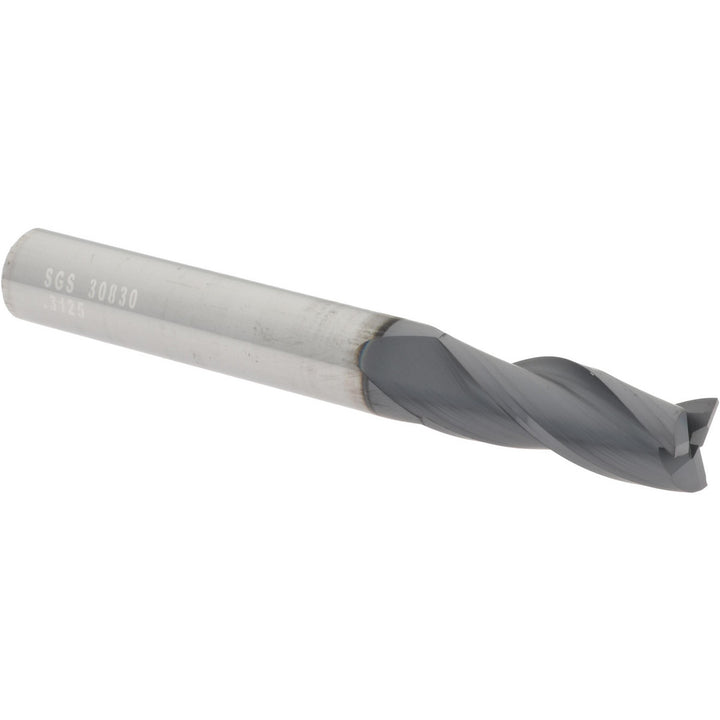

5/16" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30830

SGS

5/16" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 30830

MFR# 30830Series 5

$36.70List $47.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 30830 is a 5/16 3-flute Solid Carbide (Micrograin) square end mill. 13/16 length of cut, 2-1/2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeRegular
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.0001/-0.002 in
Number of flutes3
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
