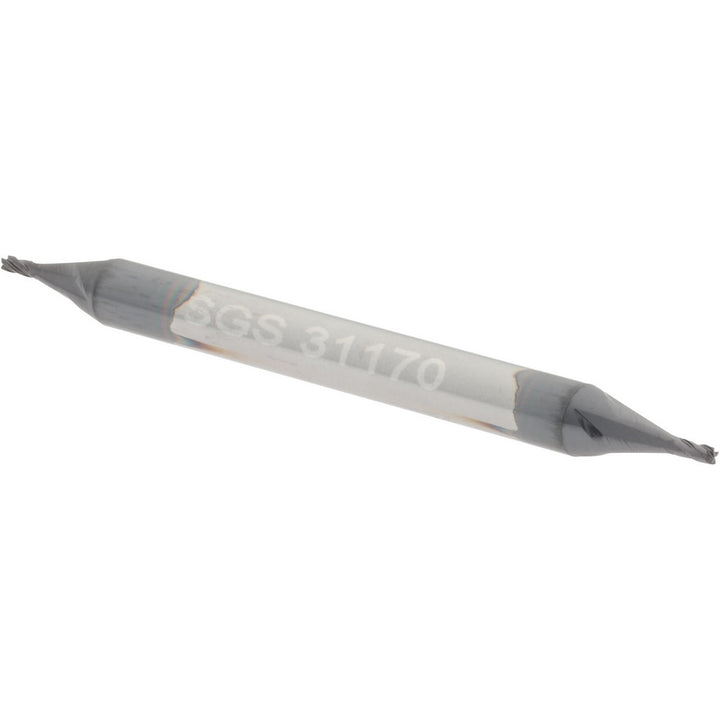

1/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31170

SGS

1/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31170

MFR# 31170Series 14

$30.27List $38.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 31170 is a 1/32 4-flute Solid Carbide (Micrograin) square end mill. 1/16 length of cut, 1-1/2 overall length. Series 14.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/16
Length of cut range0.0000 - 0.1000
Length typeStub
Material gradeMicrograin
Mill diameter in1/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
