7/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31182

SGS

7/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31182

MFR# 31182Series 14

$42.26List $54.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

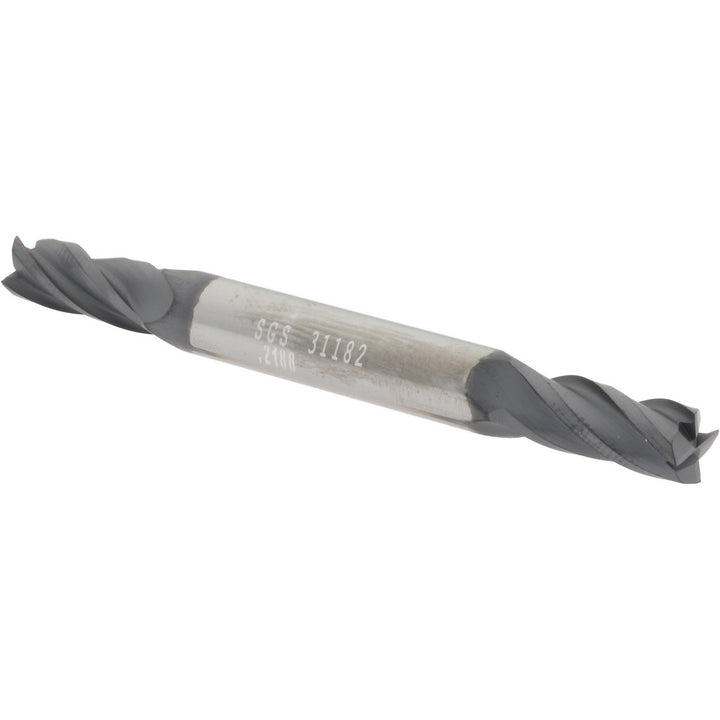

The SGS 31182 is a 7/32 4-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2-1/2 overall length. Series 14.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter in7/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
