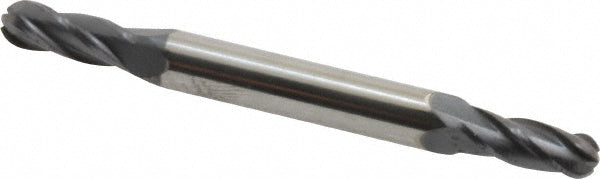

13/64" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31229

SGS

13/64" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31229

MFR# 31229Series 14B

$47.67List $61.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter13/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 31229 is a 13/64 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 2-1/2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Material gradeMicrograin
Mill diameter in13/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endDouble
Variable helixNo
Variable indexNo
