SGS
13/64" 4-Flute Solid Carbide Ball End Mill - SGS 31424
MFR# 31424Series 14B
$42.54List $54.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter13/64
Flutes4
MaterialSolid Carbide
CoatingUncoated
Description

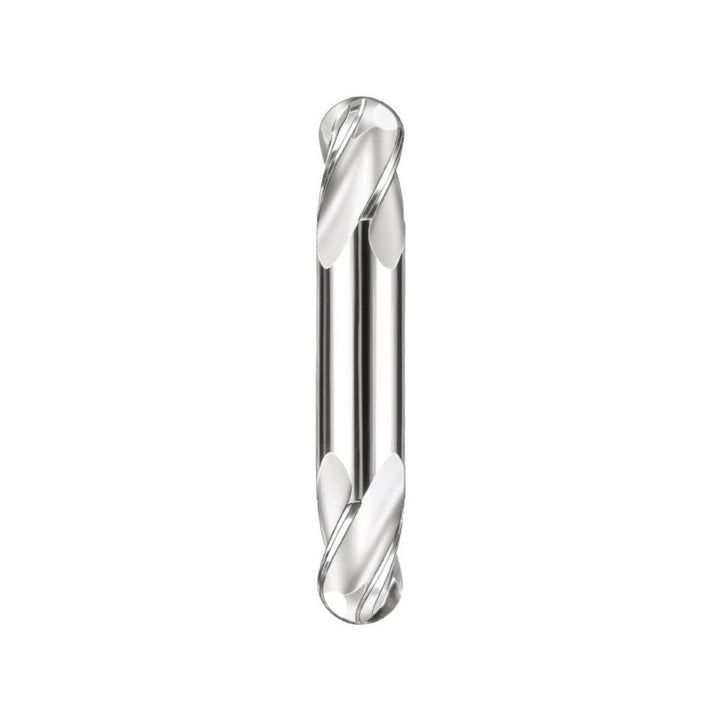

The SGS 31424 is a 13/64 4-flute Solid Carbide (Micrograin) ball end mill. 1/2 length of cut, 2-1/2 overall length. Series 14B.
Specifications
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length typeStub
Material gradeMicrograin
Mill diameter in13/64
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endDouble
Variable helixNo
Variable indexNo
