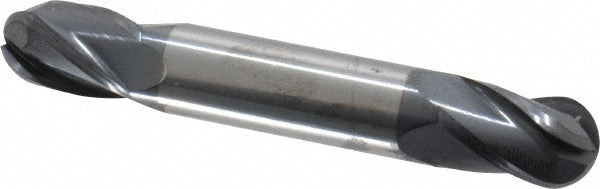

3/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31235

SGS

3/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 31235

MFR# 31235Series 14B

$63.78List $81.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 31235 is a 3/8 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 9/16 length of cut, 2-1/2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endDouble
Variable helixNo
Variable indexNo
