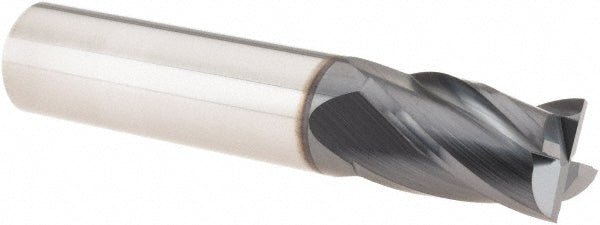

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31259

SGS

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31259

MFR# 31259Series 16

$41.19List $52.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 31259 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 5/8 length of cut, 2 overall length. Series 16.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
