3/8" 4-Flute Solid Carbide Ball End Mill - SGS 31436

SGS

3/8" 4-Flute Solid Carbide Ball End Mill - SGS 31436

MFR# 31436Series 14B

$57.08List $73.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

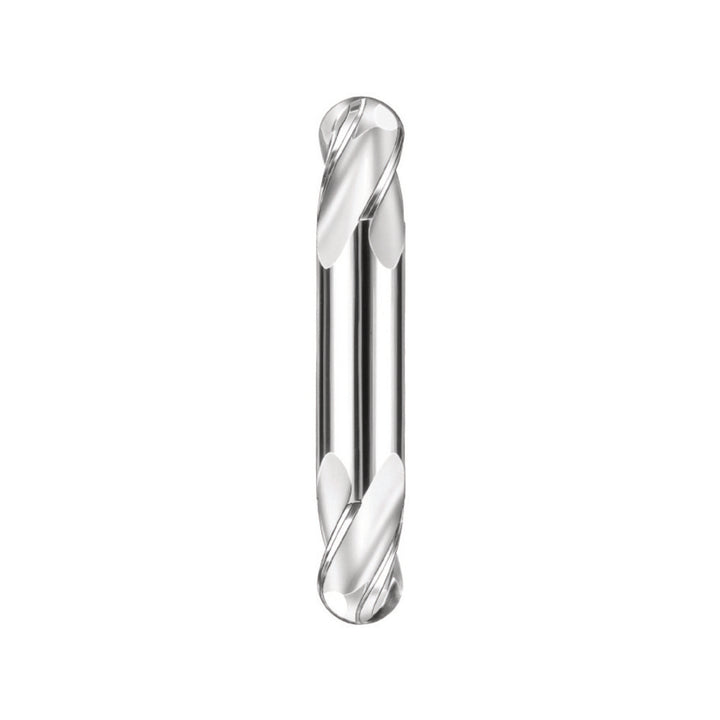

The SGS 31436 is a 3/8 4-flute Solid Carbide (Micrograin) ball end mill. 9/16 length of cut, 3 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/8
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endDouble
Variable helixNo
Variable indexNo
