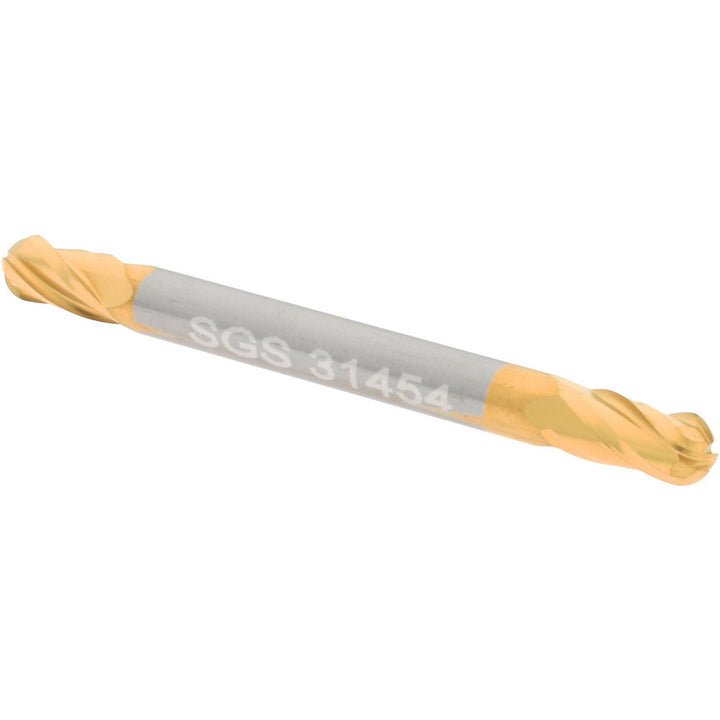

1/8" 4-Flute Solid Carbide Ball End Mill, TiN - SGS 31454

SGS

1/8" 4-Flute Solid Carbide Ball End Mill, TiN - SGS 31454

MFR# 31454Series 14B

$25.82List $33.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 31454 is a 1/8 4-flute Solid Carbide (Micrograin) ball end mill with a Titanium Nitride finish for longer tool life. 1/4 length of cut, 1-1/2 overall length. Series 14B.

Specifications

ChipbreakerNo
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/4
Length typeStub
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001 to -0.0004 in
Single or double endDouble
Variable helixNo
Variable indexNo
