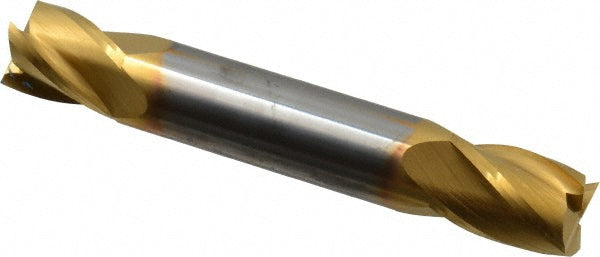

7/16" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31477

SGS

7/16" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31477

MFR# 31477Series 14

$83.21List $106.73 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

The SGS 31477 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 9/16 length of cut, 2-3/4 overall length. Series 14.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
