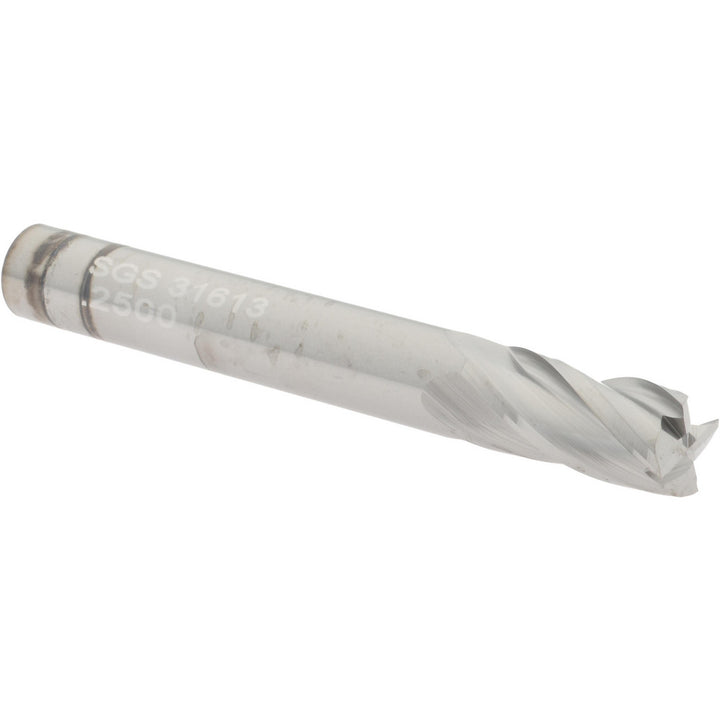

1/4" 4-Flute Solid Carbide Square End Mill - SGS 31613

SGS

1/4" 4-Flute Solid Carbide Square End Mill - SGS 31613

MFR# 31613Series 16

$20.03List $25.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide

Description

The SGS 31613 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length. Series 16.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
