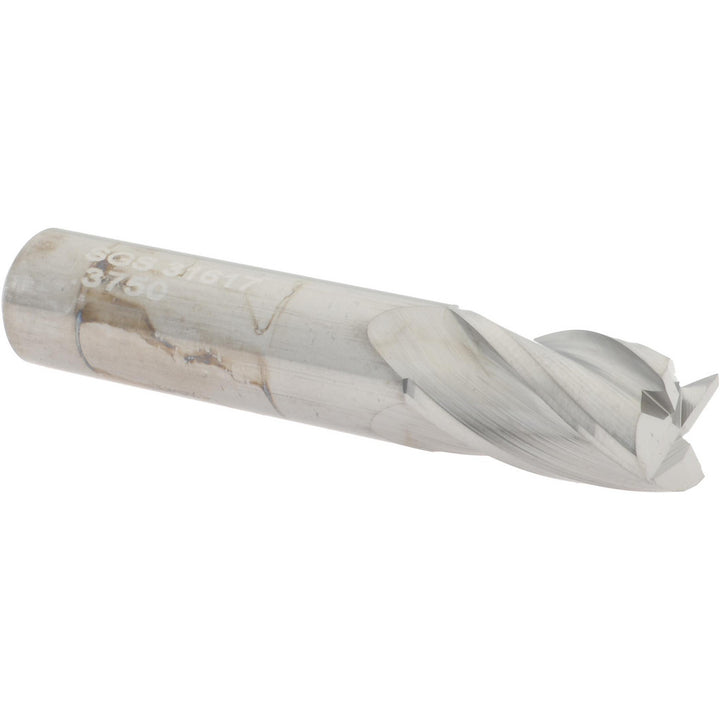

3/8" 4-Flute Solid Carbide Square End Mill - SGS 31617

SGS

3/8" 4-Flute Solid Carbide Square End Mill - SGS 31617

MFR# 31617Series 16

$37.01List $47.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide

Description

The SGS 31617 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 16.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

ProMax3/8" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-02422 $48.70 Supermill3/8" 4-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251289 $44.70 ProMax3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-02424 $48.70 Titan USA3/8" 4-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90924 $34.09
