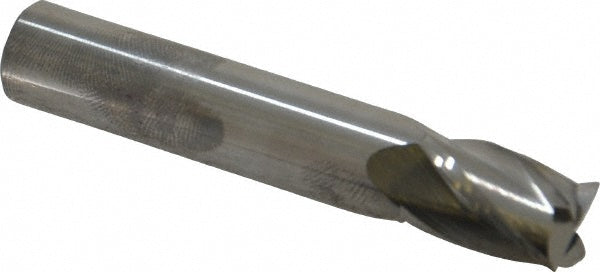

7/16" 4-Flute Solid Carbide Square End Mill - SGS 31619

SGS

7/16" 4-Flute Solid Carbide Square End Mill - SGS 31619

MFR# 31619Series 16

$46.40List $59.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide

Description

The SGS 31619 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 16.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
