3/4" 4-Flute Solid Carbide Square End Mill - SGS 31625

SGS

3/4" 4-Flute Solid Carbide Square End Mill - SGS 31625

MFR# 31625Series 16

$160.56List $205.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide

Description

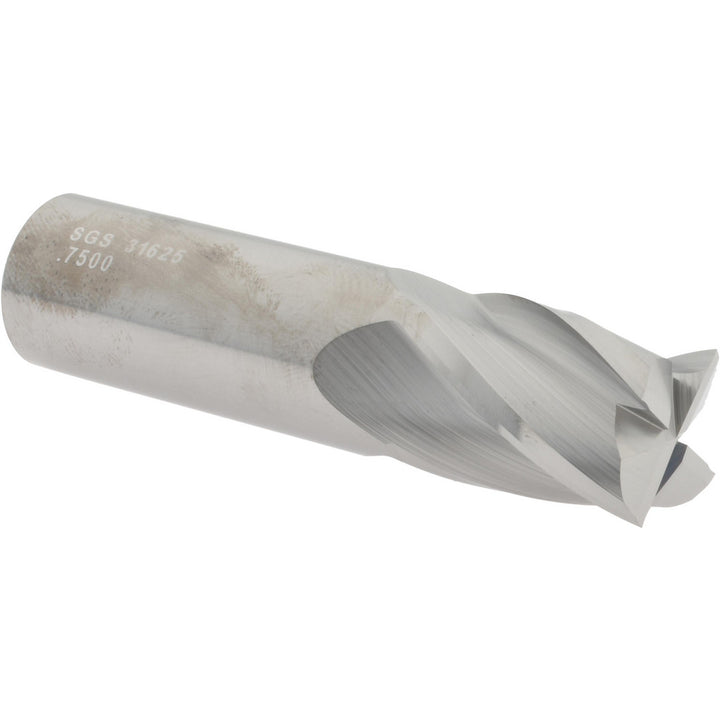

The SGS 31625 is a 3/4 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series 16.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStub
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
