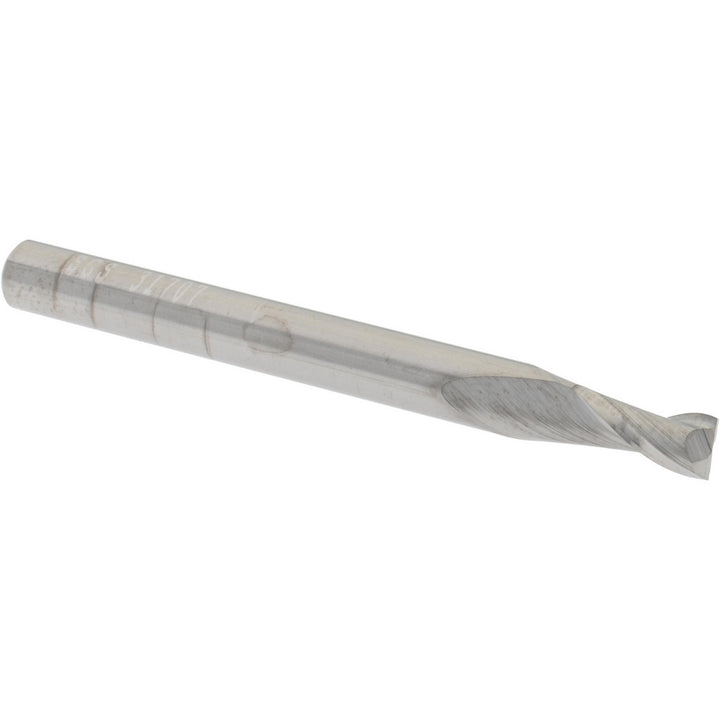

5/32" 2-Flute Solid Carbide Square End Mill - SGS 31707

SGS

5/32" 2-Flute Solid Carbide Square End Mill - SGS 31707

MFR# 31707Series 17

$16.61List $21.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 31707 is a 5/32 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 5/16 length of cut, 2 overall length. Series 17.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes2
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
