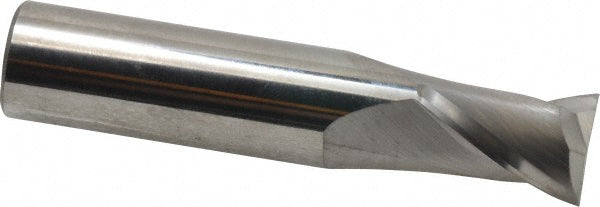

5/8" 2-Flute Solid Carbide Square End Mill - SGS 31723

SGS

5/8" 2-Flute Solid Carbide Square End Mill - SGS 31723

MFR# 31723Series 17

$109.97List $141.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide

Description

The SGS 31723 is a 5/8 2-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 3 overall length. Series 17.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeStub
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Titan USA5/8" 2-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC11240 $111.33 SGS5/8" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34682 $288.03 OSG5/8" 2-Flute Solid Carbide Square End Mill, TiCN - OSG 412-625008 $96.75 SGS5/8" 2-Flute Solid Carbide Square End Mill - SGS 34644 $244.78
