SGS

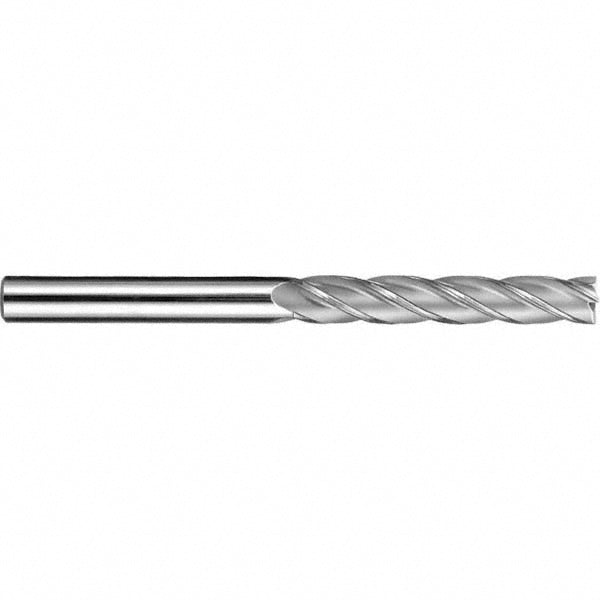

1/8" 4-Flute Solid Carbide Square End Mill, TiN - SGS 31860

MFR# 31860Series 1EL

$33.10List $42.45 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The SGS 31860 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a TiN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 1 length of cut, 3 overall length. Series 1EL.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Coating finish familyTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length typeExtra Long

Material gradeMicrograin

Mill diameter in1/8

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes4

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter in1/8

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
