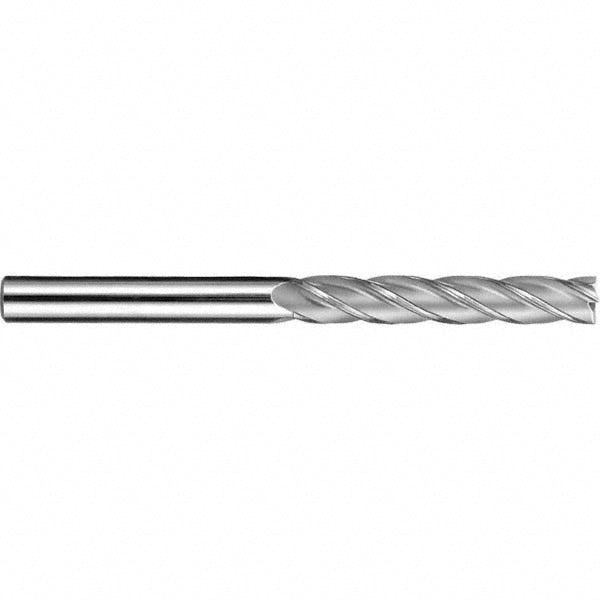

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31886

SGS

1/2" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31886

MFR# 31886Series 1EL

$147.68List $189.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 31886 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3 length of cut, 6 overall length. Series 1EL.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3
Length of cut range2.0000+
Length typeExtra Long
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in6
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
