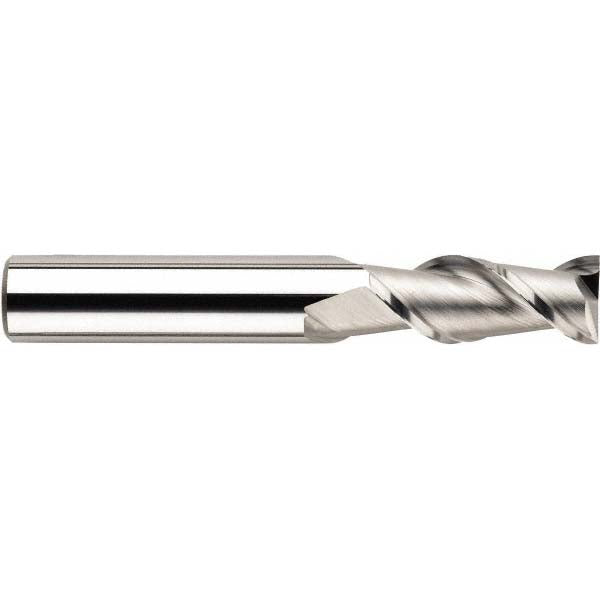

1/4" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 32054

MFR# 32054Series 44

$130.30List $167.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 32054 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 1-1/4 length of cut, 3-1/16 overall length. Series 44.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeStub

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.00000/-0.00035 in

Number of flutes2

Overall length in3-1/16

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
