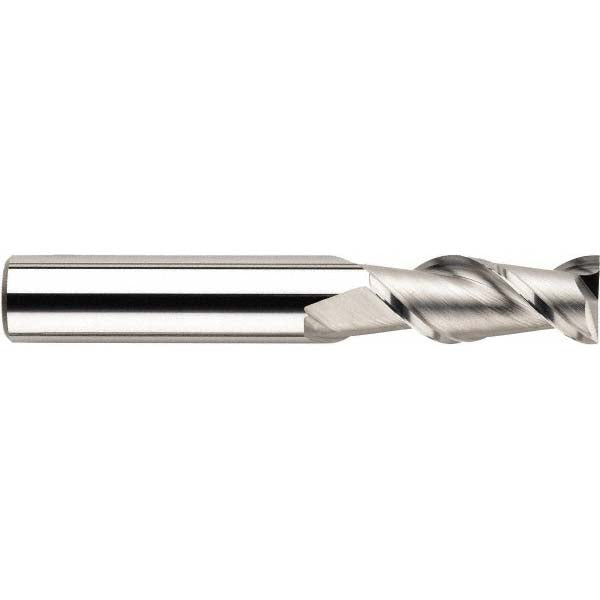

1/4" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 32055

SGS

1/4" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 32055

MFR# 32055Series 44

$169.45List $217.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide
CoatingTiB2

Description

The SGS 32055 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill with a TiB2 finish for longer tool life. Suited for non-ferrous metal. 1-3/4 length of cut, 3-9/16 overall length. Series 44.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-3/4
Length of cut range1.5000 - 2.0000
Length typeStub
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes2
Overall length in3-9/16
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
