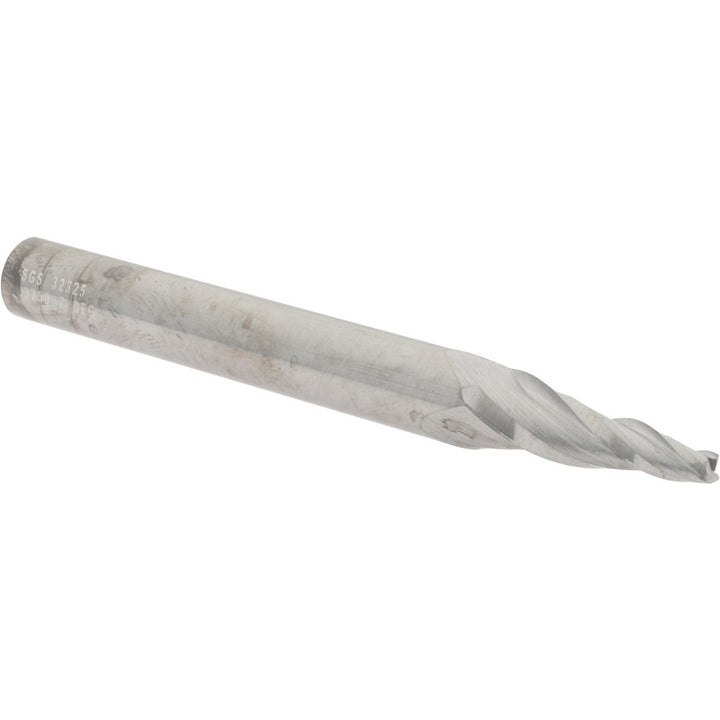

0.1250" 3-Flute Solid Carbide Tapered End Mill - SGS 32325

SGS

0.1250" 3-Flute Solid Carbide Tapered End Mill - SGS 32325

MFR# 32325Series 23

$79.91List $102.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 32325 is a 0.1250 3-flute Solid Carbide (Micrograin) tapered end mill. 1 length of cut, 3-1/2 overall length. Series 23.

Specifications

CentercuttingYes
Coating finishUncoated
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1
Material gradeMicrograin
Mill diameter0.1250
Number of flutes3
Overall length in3-1/2
Shank diameter in3/8
Shank diameter tolerance-.0001/-.0004 in
Small end diameter in1/8
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side7.00
