SGS

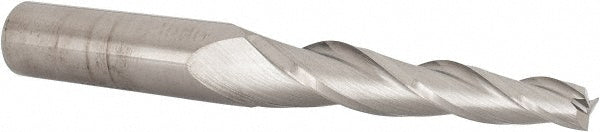

0.2500" 3-Flute Solid Carbide Tapered End Mill - SGS 32335
MFR# 32335Series 23
$124.86List $160.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
Description
The SGS 32335 is a 0.2500 3-flute Solid Carbide (Micrograin) tapered end mill. 2 length of cut, 4 overall length. Series 23.
Specifications
CentercuttingYes
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in2
Material gradeMicrograin
Mill diameter0.2500
Number of flutes3
Overall length in4
Shank diameter in1/2
Shank diameter tolerance-.0001/-.0004 in
Small end diameter in1/4
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side3.00
