SGS
0.1880" 3-Flute Solid Carbide Tapered End Mill - SGS 32339
MFR# 32339Series 23
$123.53List $158.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description

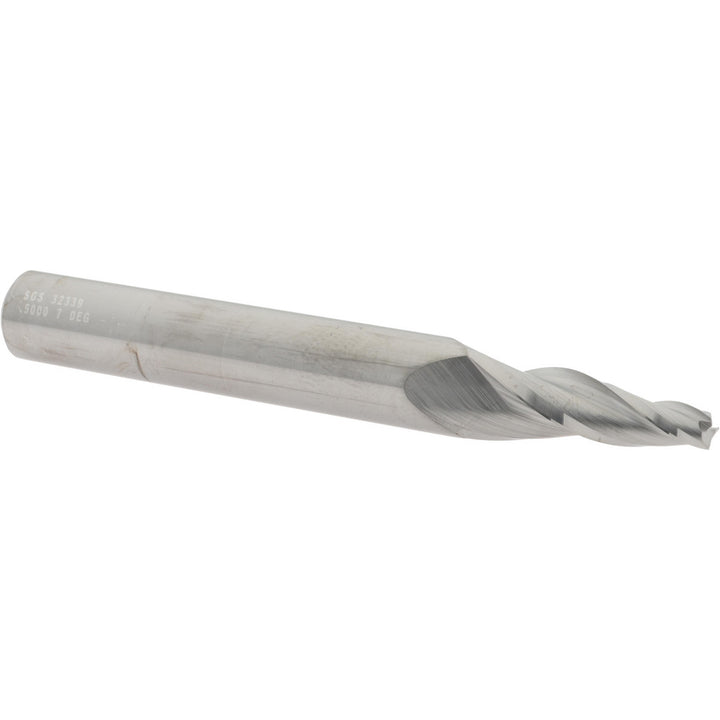

The SGS 32339 is a 0.1880 3-flute Solid Carbide (Micrograin) tapered end mill. 1-1/4 length of cut, 4 overall length. Series 23.
Specifications
CentercuttingYes
Coating finishUncoated
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter0.1880
Number of flutes3
Overall length in4
Shank diameter in1/2
Shank diameter tolerance-.0001/-.0004 in
Small end diameter in3/16
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side7.00
