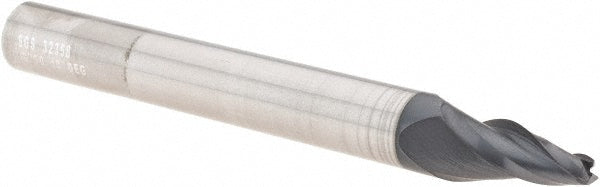

0.1250" 3-Flute Solid Carbide Tapered End Mill, AlTiN - SGS 32358

SGS

0.1250" 3-Flute Solid Carbide Tapered End Mill, AlTiN - SGS 32358

MFR# 32358Series 23

$90.96List $116.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32358 is a 0.1250 3-flute Solid Carbide (Micrograin) tapered end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 3-1/2 overall length. Series 23.

Specifications

CentercuttingYes
Coating finishAlTiN
End mill materialSolid Carbide
End shapeSquare
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in3/4
Material gradeMicrograin
Mill diameter0.1250
Number of flutes3
Overall length in3-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Small end diameter in1/8
Small end diameter tolerance+0.001/-0.002 in
Taper angle per side10.00
