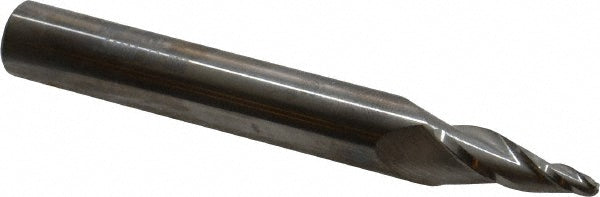

0.1250" 3-Flute Solid Carbide Tapered End Mill - SGS 32442

SGS

0.1250" 3-Flute Solid Carbide Tapered End Mill - SGS 32442

MFR# 32442Series 24B

$137.83List $176.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 32442 is a 0.1250 3-flute Solid Carbide (Micrograin) tapered end mill. 1 length of cut, 4 overall length. Series 24B.

Specifications

CentercuttingYes
Coating finishUncoated
End mill materialSolid Carbide
End shapeBall
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1
Material gradeMicrograin
Mill diameter0.1250
Nose radius in1/16
Number of flutes3
Overall length in4
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Small end diameter in1/8
Small end diameter tolerance+0.0000/-0.0010 in
Taper angle per side10.00
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
