3-Flute Solid Carbide Tapered End Mill, AlTiN - SGS 32475

SGS

3-Flute Solid Carbide Tapered End Mill, AlTiN - SGS 32475

MFR# 32475Series 24

$63.04List $80.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

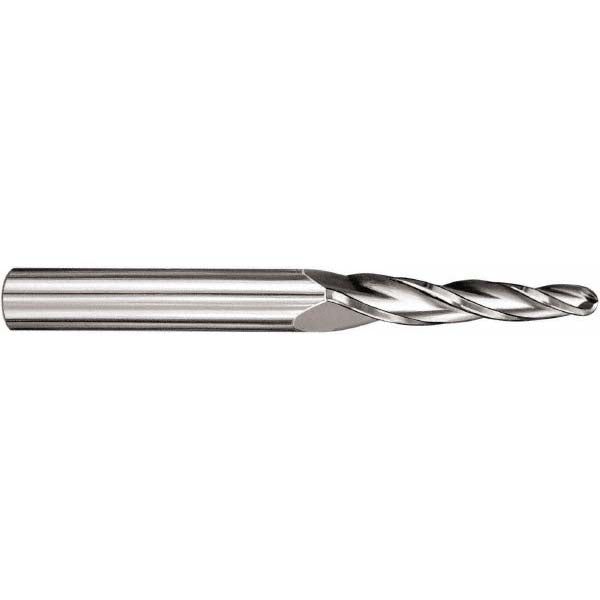

The SGS 32475 is a 3-flute Solid Carbide (Micrograin) tapered end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 3 overall length. Series 24.

Specifications

CentercuttingYes
Coating finishAlTiN
End mill materialSolid Carbide
End shapeBall
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1/2
Material gradeMicrograin
Nose radius0.0620
Number of flutes3
Overall length in3
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Small end diameter tolerance+0.0000/-0.0010 in
Taper angle per side7.00
