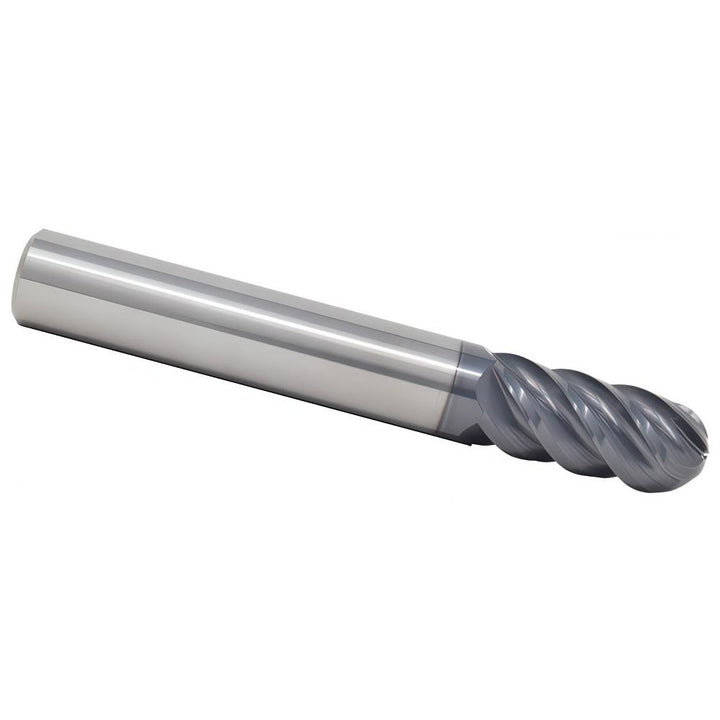

1/4" 5-Flute Solid Carbide Ball End Mill, AlTiN - SGS 32500

MFR# 32500Series 55B

$40.66List $52.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 32500 is a 1/4 5-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 55B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in3/4

Length typeRegular

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/4

Mill diameter tolerance+0.0000 to -0.0020 in

Nose radius0.1250

Number of flutes5

Overall length in2-1/2

Overall length tolerance+0.062 to -0.062 in

Shank diameter in1/4

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
