SGS

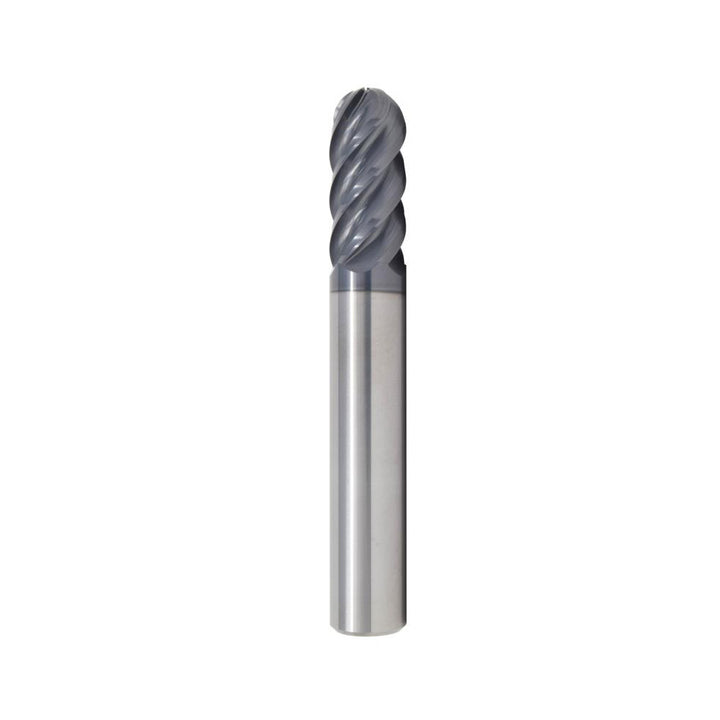

5/8" 5-Flute Solid Carbide Ball End Mill, AlTiN - SGS 32504

MFR# 32504Series 55B

$193.38List $248.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 32504 is a 5/8 5-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-5/8 length of cut, 3-1/2 overall length. Series 55B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in1-5/8

Length typeRegular

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in5/8

Mill diameter tolerance+0.0000 to -0.0020 in

Nose radius0.3125

Number of flutes5

Overall length in3-1/2

Overall length tolerance+0.062 to -0.066 in

Shank diameter in5/8

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
