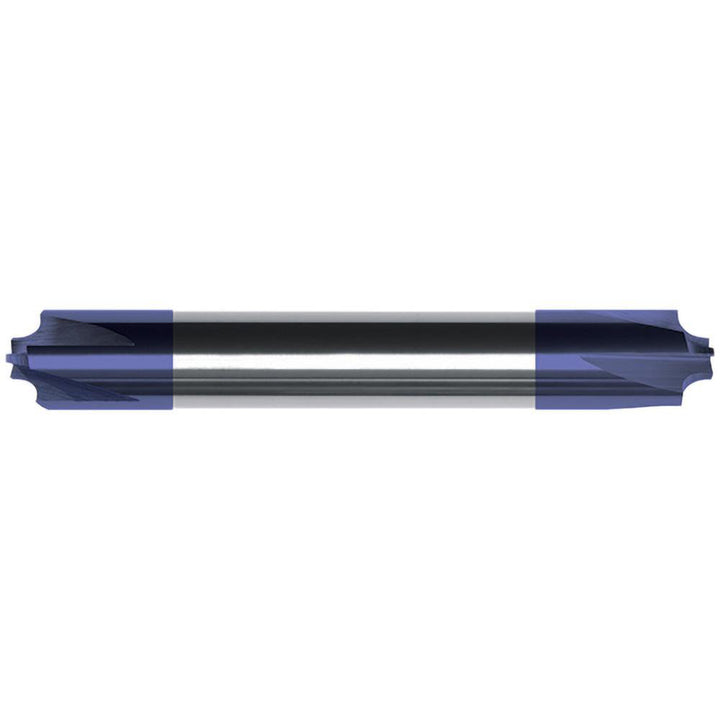

5/8" 5-Flute Solid Carbide Corner Rounding End Mill, AlTiN - Internal Tool 168-1105

Internal Tool

5/8" 5-Flute Solid Carbide Corner Rounding End Mill, AlTiN - Internal Tool 168-1105

MFR# 168-1105Series 168

$257.17List $329.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Internal Tool 168-1105 is a 5/8 5-flute Solid Carbide corner rounding end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, super alloys & titanium. 3-1/2 overall length. Series 168.

Specifications

Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Flute typeStraight
Helix angle0.00
Mill diameter in5/8
Number of flutes5
Overall length in3-1/2
Primary workpiece materialSteel; Stainless Steel; Super Alloys & Titanium
Radius in3/16
Shank diameter in5/8
Shank typeCylindrical
Single or double endDouble End
Tip diameter in7/32
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
