1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32659

SGS

1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32659

MFR# 32659Series 55

$41.14List $52.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

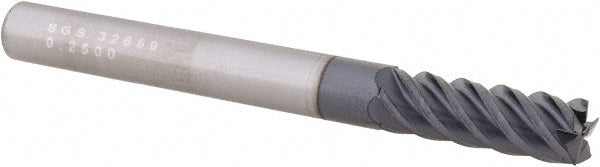

The SGS 32659 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill. 3/4 length of cut, 2-1/2 overall length. Series 55.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
