5/16" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32660

MFR# 32660Series 55

$53.48List $68.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

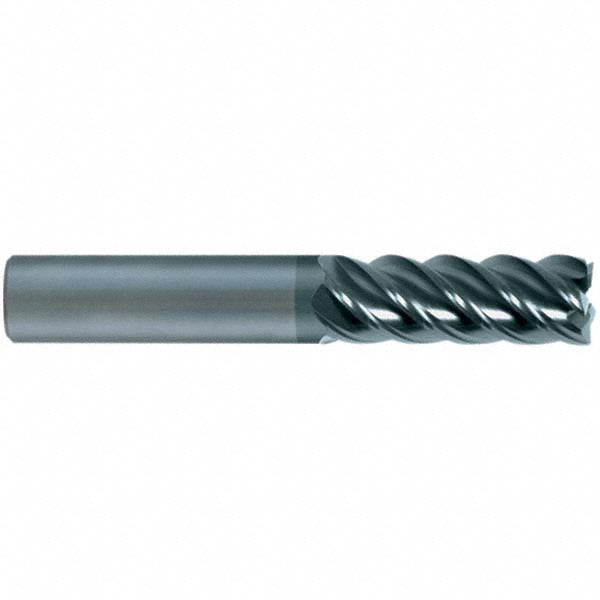

The SGS 32660 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 13/16 length of cut, 2-1/2 overall length. Series 55.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes5

Overall length in2-1/2

Shank diameter in5/16

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
