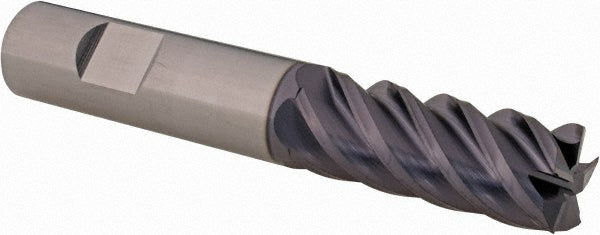

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32665

SGS

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32665

MFR# 32665Series 55

$95.27List $122.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32665 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1-1/4 length of cut, 3 overall length. Series 55.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
