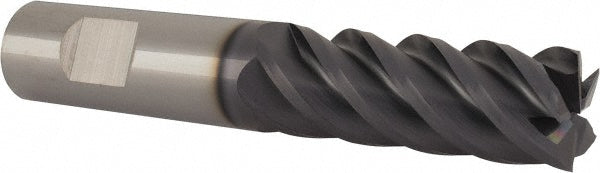

5/8" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32667

SGS

5/8" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32667

MFR# 32667Series 55

$183.87List $235.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32667 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 3-1/2 overall length. Series 55.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in3-1/2
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
