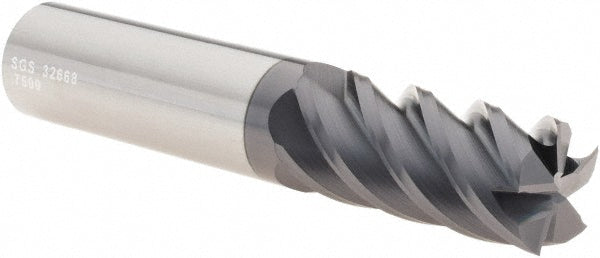

3/4" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32668

SGS

3/4" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32668

MFR# 32668Series 55

$255.23List $327.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32668 is a 3/4 5-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 4 overall length. Series 55.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in4
Shank diameter in3/4
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Iscar3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398390 $402.96 Iscar3/4" 5-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398532 $229.75 Seco3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 17007066 $293.17 SGS3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 32585 $266.32
