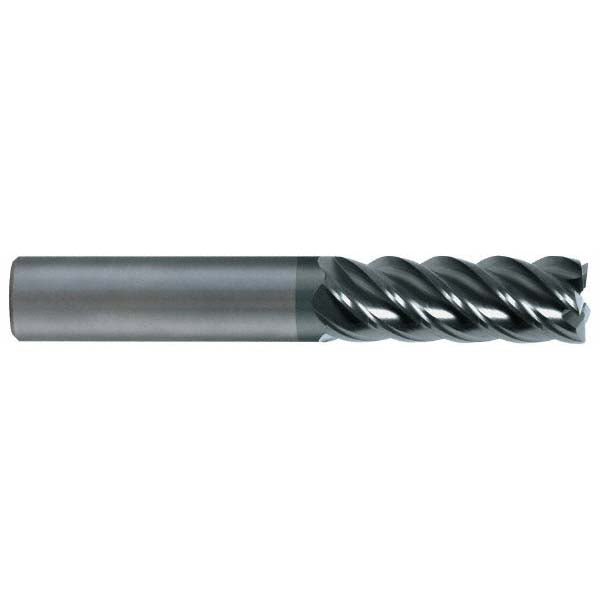

3/16" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32673

SGS

3/16" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32673

MFR# 32673Series 55

$34.18List $43.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32673 is a 3/16 5-flute Solid Carbide (Micrograin) square end mill. 5/16 length of cut, 2 overall length. Series 55.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
