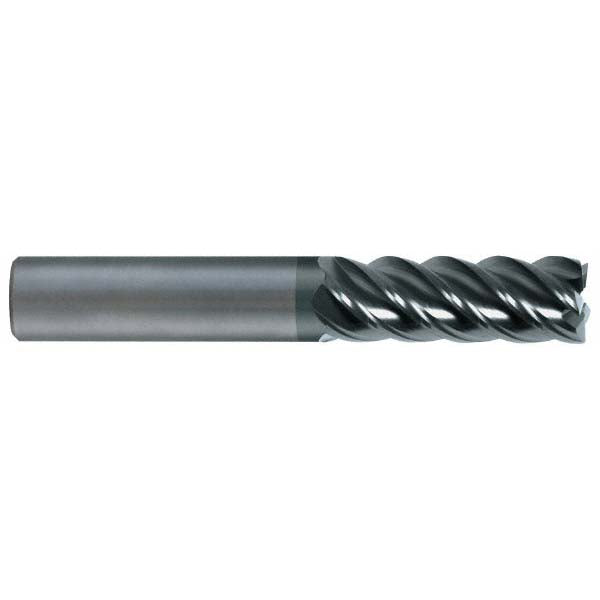

1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32674

MFR# 32674Series 55

$32.63List $41.86 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 32674 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/8 length of cut, 2 overall length. Series 55.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Length typeStub

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes5

Overall length in2

Shank diameter in1/4

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes
