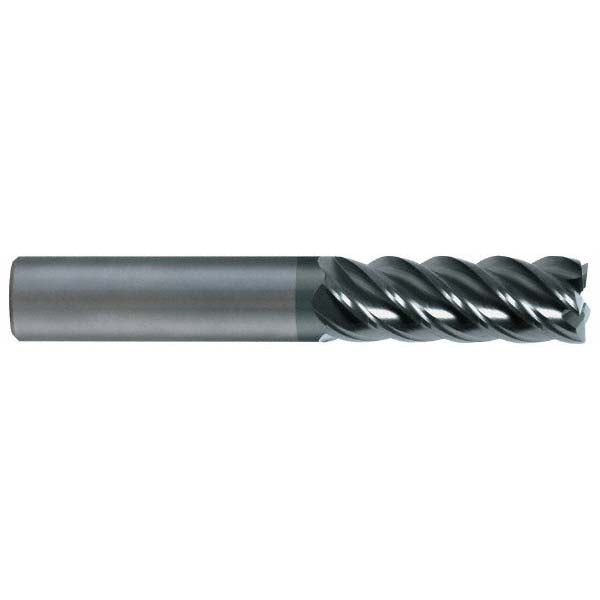

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32679

SGS

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 32679

MFR# 32679Series 55

$76.74List $98.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 32679 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 55.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes5
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS1/2" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - SGS 32594 $82.07 Helical Solutions1/2" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 81761 $118.81 Helical Solutions1/2" 5-Flute Solid Carbide Corner Radius End Mill, APLUS - Helical Solutions 55152 $147.54 Supermill1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - Supermill 5252025 $84.38
