SGS

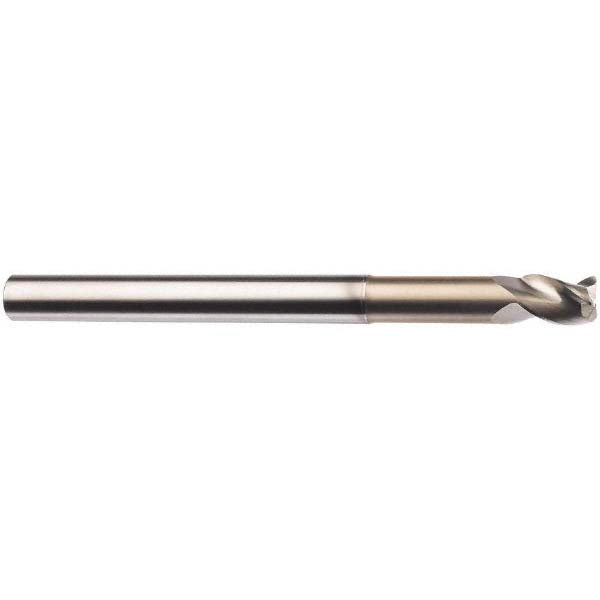

1/8" 3-Flute Solid Carbide Square End Mill - SGS 32691
MFR# 32691Series 43
$35.66List $44.94
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
Description
The SGS 32691 is a 1/8 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 5/32 length of cut, 3 overall length. Series 43.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/32
Length of cut range0.1000 - 0.2000
Length typeLong
Mill diameter in1/8
Mill diameter tolerance+0.00000 to -0.00032 in
Neck diameter0.1050
Neck length0.7500
Number of flutes3
Overall length in3
Primary workpiece materialNon-Ferrous Metal
Reach length in3/4
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
