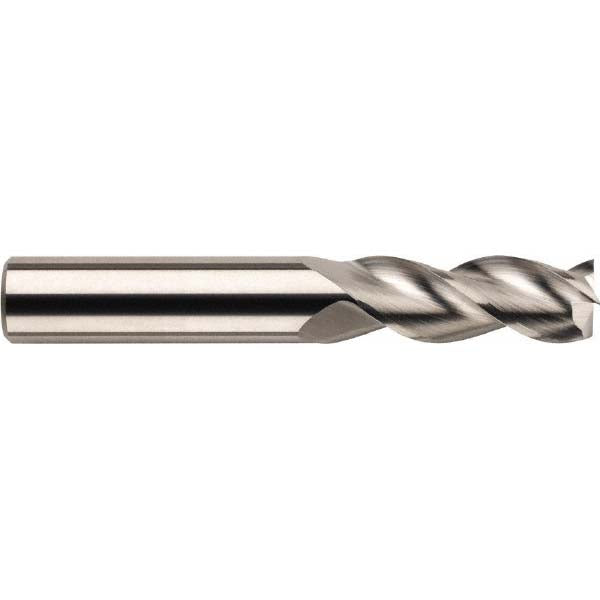

3/16" 3-Flute Solid Carbide Square End Mill - SGS 32701

MFR# 32701Series 43L

$40.49List $51.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 32701 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 7/32 length of cut, 3 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in7/32

Length of cut range0.2000 - 0.3000

Length typeLong

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.00000/-0.00032 in

Number of flutes3

Overall length in3

Primary workpiece materialNon-Ferrous Metal

Reach length in1/2

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
