SGS

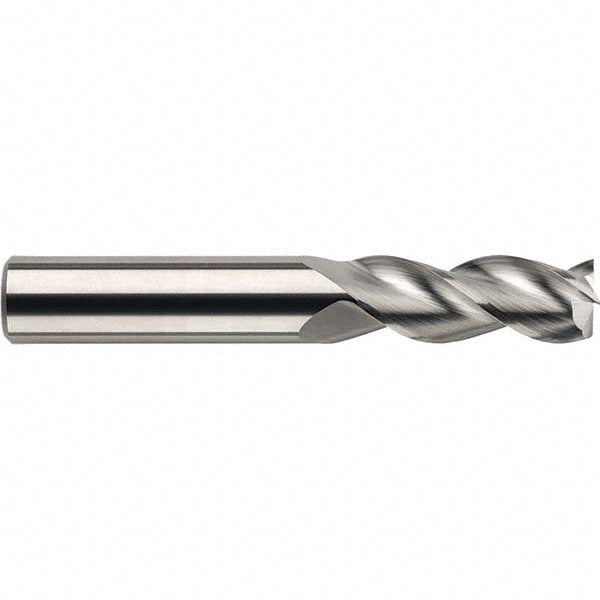

3/8" 3-Flute Solid Carbide Square End Mill - SGS 32707

MFR# 32707Series 43L

$83.91List $107.63 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 32707 is a 3/8 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1/2 length of cut, 4 overall length. Series 43L.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeLong

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.00000/-0.00035 in

Number of flutes3

Overall length in4

Primary workpiece materialNon-Ferrous Metal

Reach length in1-1/8

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
